Podľa materiálu: - dodávka materiálu s opracovaním: odliatky GG 18/20/25/30 o hmotnosti do 850 kg 1700x1500x400mm odliatky GS 45/52/60/30Mn5/20Mn5 o hmotnosti do 650 kg rozmeru 1200 x1200x 400mm - odliatky podľa DIN EN 1563: EN-GJS-350, EN-GJS-400 (GGG40), EN-GJS-500 (GGG50), EN-GJS-600 (GGG60), EN-GJS-700 (GGG70) o hmotnosti do 450-500kg - železné a neželezné kovy - opracovanie zákazníkom dodaných materiálov (GG, GGG, GS, železné a neželezné kovy) Podľa technológie opracovania: - kubické opracovanie (oceľ bočnice , zvarence, odliatky, výkovky): 600 x 600 x 600 mm 20-200 ks v dávke 2000 x 2000 mm, 5-10 ks v dávke - valcový program, točivé dielce (oceľ, zvarence, odliatky, výkovky): - do priemeru 600 prírubové 20-200 ks v dávke v materiáloch oceľ, výkovky, odliatky - do priemeru 500 a dĺžky 4000 mm, 5-50 ks v dávke v materiáloch oceľ, výkovky, odliatky - úprava povrchu chróm, pogumovanie, nikel, zinok, náter montážne skupiny (do hmotnosti 8t, malosériové 5-10 ks, vrátane elektrickej, pneumatickej, hydraulickej montáže a funkčných skúšok)
- Screw diameter 75 mm x 27d
- Type E45 x 30D - Screw: d= 45 X 30 D, nitrited, - Cylinder: d= 45 X 30 D, nitrited, - 4 cylinder zones, zone 3 und 4 with cooling fan, - Water cooled feeding section, connection R 1/8´. Hopper 40 Litre. Drive: Frequenzgeregelter Drehstromantrieb 13 kW, 3000 u/min., Stellbereich 1 : 100, Fremdlüfter, Thermokontakt. ELEKTRIK: Schaltkasten für die Temperaturregelung, Zweipunktregler für Zone 1 und 2 auf dem Zylinder, Dreipunktregler für die Zonen 3 und 4. 2 zusätzliche Zweipunktregler für Werkzeugzonen, zugehörige Sicherungen, Solid-State-Relais, Schütze, Steckdosen, Thermofühlerausgänge und Thermofühler (FeCuNi). MOTORSTEUERUNG: EIN/AUS-Leuchttaster, NOT/AUS-Taster, Dreigang Poti. Anzeige für Motorstrom und Schneckendrehzahl. Schaltkasten mit Hauptschalter, Stromrichter, Netz- und Anker-Drosseln, Steuertrafo, Sicherungen, UNTERBAU: Arbeitshöhe 1350, Stahlrohrgestell, vorne und hinten Abdeckung, Zylinderstütze. LACKIERUNG RAL 6011/ 2004/ 7032
- Winder for sheet lines - 2 winding positions back to back - Working width 1200 mm - Max. roll diameter 800 mm

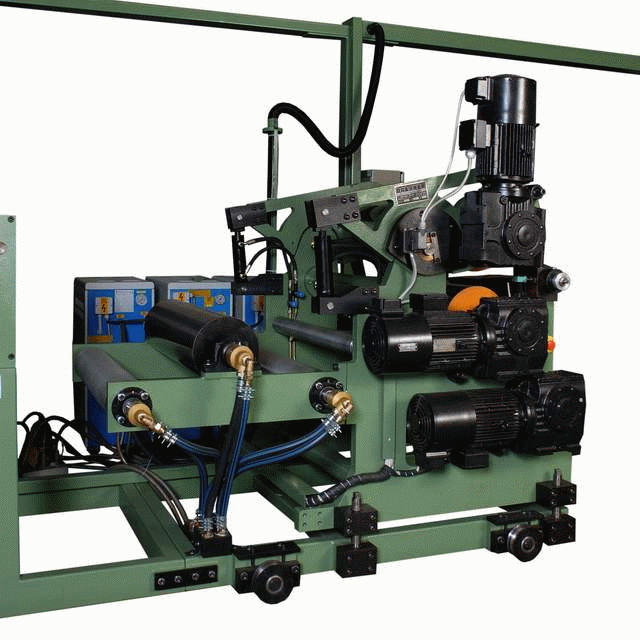

- Three roll polishing stack - Width 1300 mm - Roll diameter 350 mm - 3 motors a 3,5 kW
- Net width 800 mm - output up to 180 kg/h - Thickness range from 0,3 to 1,2 mm Extruder Type E75 x 30 D: 5 heating zones on cylinder a 4 kW AC-Motor 90 kW 1 Screen changer manual 1 Granulat feeding device monted on the extruder hopper 1 Flat die head, with flex lip adjustment 1 Three roll polishing Stack, roll width 900 mm 1 Take off unit with rwo rubber rolls, width 900 mm 1 Cutting unit with 3 knives 3 Water temperating units heating/cooling 2 Winding stations (back to back), working width 900 mm
- Screw diam. 90 mm, nitrited, L:D= 30:1, - 5 heating zones on cylinder a 6 kW - Drive: Variable aspeed frequency controlled AC-motor 90 kW 1 Screen changer manual Type SW 090 1 Die head Type DO 315 1 Trolley for pipe head support 1 Vacuum calibrating unit Sealing flange for each size 1 Water spray bath 1 Four belt take off 1 Planetary Cutting saw 1 Pipe collection table 6000 mm lenght 1 Gravimetric Computer system 1 Granulate Hopper Loader 1 Masterbatch dosing unit
Turbo Mixer of 200 litre of total capacity; Serviceable capacity of about 60 % of the toal capavity. - 6 to 8 batches per hour; - Stainless steel double-wall; - Polished internal surface; Inner wall of stainless steel AISI1316L and outside wall AISI1304; Mixing blades of stainless steel AISI1316L with a Colmonoy Coating High corrosion and abrasion resistant). DC motor with variable speed of 46, 8 kW. Power transnission by belts. Pneumatic system of lid opening by rotation. - Cooling Mixer of 600 litre of total capacity; - Stainless steel double-wall for intense cooling; - Colling of the vessel divided in different chambers; - Blades in stainless steel strengthened to avoid bending; - AC motor of 13,1 kW with variable speed by frequency inverter; - Power transmission by elastic coupling between bearing and gearbox; - Pneumatic system for lid opening by rotation; - Low noise level; - Supplied with an inner cooling ring for lower thermal conductivity materials, on request; - Painting: Main colour, white RAL 7032 - Guard, orange RAL 2008, - or other, to suit your requirements. - Electric: 3 x 380V, 50 Hz, or other to suit your requirements. Delivery: approx. 90 days from receipt of order and down payment and agreement of all technical details.
Foil Thickness Measuring Instrument F 1000/30: This handy measuring instrument is used exclusively to measure the thickness of thinfoils. The frame has the required rigidity, the isolation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge, the most important bearing of which are made of sapphires. The measuring pressure is approximately 2 N. If required the instrument can be supplied with a higher measuring pressure of up to approximately 4,5 N or with a lower measuring pressure down to approximately 1,2 N. Technical Data F 1000/30: - Graduation 0.001 mm - Measuring range 1 mm - 1 rotation of the pointer 0.2 mm - Depth of jaw 30 mm - Feeler - diameter, flat 6.35 mm
Thickness Measuring Instrument J 50 R: The standard model has side discs at the lower roller for guiding the thread. The instrument is therefore suited for measuring thickness of wirws and threads especially in continuous motion. The gauge can be supplied without side discs. Without them the gauge is suitable for the measurement of paper, foil, metal, sheet etc. Technical Data J 50 R: - Graduation 0.01 mm - Measuring range 5 mm - Depth of jaw 50 mm - Width of the rollers 8.7 mm - Diameter of the rollers 8.4 mm
